Radiant Floor Heating: How It Works, Benefits, Costs, and Design Considerations

Radiant floor heating is a heating method that delivers warmth through the floor rather than relying primarily on forced air or conventional wall-mounted radiators.

Instead of heating air and distributing it through ducts, a radiant floor system transfers heat from the floor surface into the occupied space. The system can use heated water circulated through tubing or electric resistance elements installed beneath or within the floor assembly.

Radiant floor heating can provide consistent floor temperatures, reduce reliance on large air-distribution systems, and offer design flexibility because much of the heating infrastructure is concealed below the finished floor.

However, radiant floor heating is not automatically the best heating solution for every home.

The right system depends on the building’s heat loss, floor construction, insulation, available energy source, controls, installation conditions, and project budget.

Understanding these factors before selecting a system can help homeowners, architects, and project teams determine whether radiant heating is appropriate for a particular residential project.

What Is Radiant Floor Heating?

Radiant floor heating is a space-heating system that distributes heat through the floor.

There are two primary types:

• Hydronic radiant floor heating

• Electric radiant floor heating

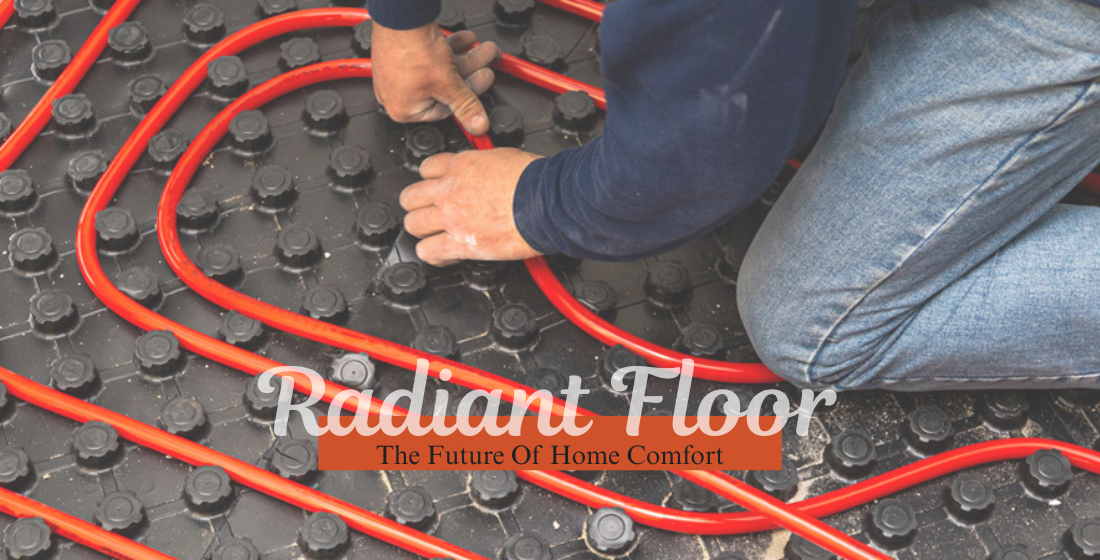

Hydronic systems circulate heated water through tubing installed beneath or within the floor.

Electric systems use resistance-heating elements to generate heat directly beneath the floor surface.

Both systems use the floor as the primary heat-distribution surface, but their equipment, installation requirements, operating characteristics, and energy sources are different.

How Does Radiant Floor Heating Work?

The basic principle is straightforward.

The heating system warms the floor.

The floor then transfers heat to the surrounding space through a combination of radiation and convection.

A simplified hydronic system works as follows:

Heat source → heated water → circulation pump → floor tubing → heat transfer to floor → heat transfer to occupied space

The heat source can vary depending on the project.

Potential sources include:

• Boiler

• Heat pump

• Air-to-water heat pump

• Ground-source heat pump

• Other hydronic heating equipment

DOE identifies air-to-water heat pumps as one option for supplying hot water to radiant floors.

What Are the Main Types of Radiant Floor Heating?

Hydronic Radiant Floor Heating

Hydronic systems circulate warm water through tubing installed within the floor assembly.

Typical components include:

• Heat source

• Circulation pump

• Tubing

• Manifold

• Controls

• Temperature sensors

• Expansion components

• Valves

Hydronic systems are commonly considered for whole-home or larger-area heating because water can carry significant amounts of heat through relatively small pipes.

DOE describes radiant floor loops as one type of hydronic heat-distribution system and notes that water-based systems can use smaller distribution piping than systems that distribute heat primarily through air ducts.

Electric Radiant Floor Heating

Electric systems use resistance-heating cables, mats, or other electrical elements installed beneath the floor.

Potential applications include:

• Bathrooms

• Kitchens

• Small rooms

• Renovations

• Supplemental floor heating

Electric systems can be relatively straightforward to install in certain applications, but the electrical load and operating cost should be evaluated before selection.

Hydronic vs. Electric Radiant Floor Heating

Factor	Hydronic	Electric
Heat source	Hot water	Electricity
Distribution	Tubing	Electrical heating elements
Typical application	Whole-home or larger areas	Smaller areas or supplemental heating
Installation	More complex	Often simpler for localized applications
Equipment	Boiler or heat pump plus components	Electrical controls and heating elements
Electrical demand	Depends on heat source and pumps	Can be significant
Floor construction	Requires tubing/system integration	Requires compatible floor assembly
Controls	Zone-based systems possible	Zone controls possible
Retrofit complexity	Can be substantial	Often easier for certain renovations

There is no universal winner.

The appropriate system depends on the project.

What Are the Benefits of Radiant Floor Heating?

1. More Even Heat Distribution

Radiant floors distribute heat across a large surface area.

This can provide more uniform heating than systems that deliver concentrated warm air from a small number of registers.

The result can be a more consistent thermal environment when the system is properly designed.

2. Improved Comfort

One of the primary reasons homeowners choose radiant floor heating is comfort.

The floor itself becomes part of the heat-distribution system, which can reduce the sensation of cold floor surfaces during winter.

This can be particularly attractive in:

• Bathrooms

• Bedrooms

• Living spaces

• Kitchens

• Areas with hard flooring

3. Reduced Dependence on Ductwork

Hydronic radiant systems distribute heat through water tubing rather than large air ducts.

DOE notes that water-based heating can use smaller pipes and smaller pumps than air-based distribution systems because water carries much more heat per unit volume than air.

This can be useful where duct routing is difficult or where preserving architectural space is important.

4. Quiet Operation

Radiant floor systems do not require the continuous movement of large volumes of air through supply ducts.

A hydronic system may still contain pumps, valves, and other mechanical equipment, but the heat-distribution portion of the system can operate very quietly.

5. Design Flexibility

Radiant systems can be concealed within the floor assembly.

This eliminates the need for conventional wall-mounted radiators or numerous visible supply registers in some applications.

That can provide architects and homeowners with greater freedom when arranging interior spaces.

6. Zoning Potential

Radiant systems can be divided into multiple heating zones.

For example:

• Bedroom zone

• Living-area zone

• Bathroom zone

• Kitchen zone

Individual controls can allow different areas to operate at different temperatures or schedules, depending on the system design.

7. Compatibility With Heat Pumps

Hydronic radiant floors can be paired with certain heat-pump systems.

DOE specifically identifies air-to-water heat pumps as a technology capable of supplying hot water to radiant floor systems.

This can make radiant heating part of a broader electrification strategy in appropriate buildings.

What Are the Disadvantages of Radiant Floor Heating?

Radiant floor heating also has limitations that should be considered before installation.

1. Higher Installation Complexity

A radiant system requires coordination between:

• Flooring

• Tubing or heating elements

• Plumbing

• Mechanical equipment

• Electrical systems

• Controls

Hydronic systems can be particularly complex because they require water distribution and mechanical equipment.

2. Higher Upfront Cost in Some Projects

Installation costs can be higher than conventional heating systems, particularly when the floor assembly needs to be modified.

The total cost depends on:

• System type

• Floor area

• Floor construction

• Existing building conditions

• Heat source

• Controls

• Labor

• Access

3. Retrofit Projects Can Be Difficult

Installing radiant floor heating in a new building is generally easier than retrofitting it into an existing building.

A retrofit may require:

• Removing flooring

• Raising floor levels

• Modifying doors

• Adjusting stairs

• Relocating fixtures

• Adding mechanical equipment

• Modifying plumbing

The existing floor construction should be evaluated before a system is selected.

4. Slower Response Time

Some radiant floor systems respond more slowly than forced-air heating.

This is particularly true for systems embedded in substantial concrete slabs.

The thermal mass can provide stable temperatures, but it also means the system may take longer to respond to thermostat changes.

5. Floor Coverings Matter

Different floor finishes transfer heat differently.

Common considerations include:

• Tile

• Stone

• Engineered wood

• Hardwood

• Vinyl

• Carpet

The flooring manufacturer’s requirements and the radiant-system design should be coordinated.

6. Repairs Can Be More Disruptive

Hydronic tubing is concealed within the floor.

If a component or pipe is damaged, locating and repairing the problem can be more disruptive than servicing an exposed radiator or mechanical unit.

Proper design, installation, pressure testing, and documentation are therefore important.

Is Radiant Floor Heating Energy Efficient?

Radiant floor heating can be part of an energy-efficient heating strategy, but the efficiency of the overall system depends on more than the floor itself.

Important factors include:

• Heat source efficiency

• Building insulation

• Air leakage

• Heating load

• Water temperature

• Controls

• System zoning

• Pump efficiency

• Operating schedule

A highly efficient heat source combined with a poorly insulated building can still result in high energy consumption.

Conversely, a well-insulated building with a properly designed low-temperature radiant system can perform efficiently.

DOE notes that building energy modeling can help engineers evaluate HVAC system selection, sizing, controls, and energy use.

Why Low Water Temperatures Matter for Hydronic Radiant Floors

Hydronic radiant floors can operate with relatively low water temperatures compared with some conventional hydronic heating applications.

This can be advantageous when paired with technologies such as heat pumps.

The exact water temperature depends on:

• Building heat loss

• Floor construction

• Tubing spacing

• Floor surface temperature

• Outdoor conditions

• Desired indoor temperature

The system should therefore be designed around the building’s actual heating load rather than selecting a water temperature arbitrarily.

Radiant Floor Heating and Heat Pumps

Heat pumps and radiant floors can complement one another in certain applications.

An air-to-water or ground-source heat pump can produce heated water that is circulated through floor tubing.

This creates a system consisting of:

Heat pump → hydronic distribution → radiant floor → conditioned space

DOE identifies air-to-water heat pumps as an option for supplying radiant floor systems, while ground-source heat pumps can provide high-efficiency heating by transferring heat between the building and ground.

The combination can be particularly attractive when a project is pursuing electrification and low-temperature heating.

However, the heat pump, radiant distribution, building envelope, and controls need to be designed as an integrated system.

Can Radiant Floor Heating Be Used for Cooling?

Standard radiant floor systems are primarily designed for heating.

Cooling through radiant surfaces is technically possible in certain systems, but it requires careful humidity and condensation control.

If a floor surface becomes colder than the surrounding air’s dew point, condensation can form.

For that reason, radiant cooling should not simply be assumed to work by reversing a heating system.

Projects requiring both heating and cooling may use:

• Radiant heating + separate cooling

• Radiant heating + dedicated air system

• Radiant heating and cooling panels

• Heat-pump-based systems with complementary cooling

The appropriate solution depends on climate, humidity, building envelope, and system design.

Radiant Floor Heating vs. Forced-Air Heating

Both systems can provide effective residential heating, but they distribute heat differently.

Radiant Floor Heating

• Transfers heat through the floor

• Can provide consistent surface temperatures

• Can reduce reliance on ductwork

• Can operate quietly

• Requires floor-system coordination

Forced-Air Heating

• Uses air as the heat-transfer medium

• Can respond quickly

• Can distribute heating and cooling through the same duct system

• Requires ductwork and air-distribution space

• Can incorporate filtration and ventilation depending on system design

The best option depends on the building and the owner’s priorities.

Radiant Floor Heating vs. Baseboard Heating

Traditional hydronic baseboard systems circulate hot water through radiators or baseboard units.

Radiant floor heating moves the heat-distribution surface into the floor.

Baseboard

• Visible equipment

• Easier access

• Localized heat distribution

• Wall space required

Radiant Floor

• Concealed distribution

• Large heated surface

• Greater floor-system coordination

• More difficult retrofit in some buildings

Neither system is universally superior.

The decision should consider installation conditions, heat loads, comfort requirements, aesthetics, cost, and maintenance.

How Much Does Radiant Floor Heating Cost?

There is no universal cost per square foot that applies to every project.

Installation cost depends on:

• Hydronic vs. electric system

• New construction vs. retrofit

• Floor assembly

• Area being heated

• Tubing layout

• Heat source

• Controls

• Manifolds

• Plumbing

• Electrical work

• Flooring

• Labor

• Existing building conditions

Hydronic installations can require significantly more equipment than electric systems.

A retrofit can also become more expensive if flooring must be removed and replaced.

For these reasons, a project-specific estimate is more useful than relying on a generic national price.

What Affects Radiant Floor Heating Installation Cost?

Floor Construction

A new slab installation can be easier to coordinate than modifying an existing floor.

System Type

Electric and hydronic systems have different equipment and installation requirements.

Heat Source

A hydronic system may require:

• Boiler

• Heat pump

• Circulator

• Manifold

• Expansion components

• Controls

Floor Finish

Some finishes may require additional preparation or have specific temperature limitations.

Project Size

Larger systems may require multiple zones, manifolds, pumps, and controls.

Retrofit Conditions

Existing buildings can require demolition, access work, and architectural modifications.

Can Radiant Floor Heating Be Installed Under Any Flooring?

Not necessarily.

The flooring material needs to be compatible with the radiant heating system and its operating temperatures.

Commonly considered flooring types include:

• Tile

• Stone

• Engineered wood

• Certain hardwood products

• Certain resilient flooring products

Carpet can also be used in some systems, but its thermal resistance needs to be considered.

The flooring manufacturer and radiant-system designer should coordinate requirements before installation.

How Is Hydronic Radiant Floor Heating Installed?

The installation method depends on the building and floor assembly.

A typical process may include:

Step 1: Determine Heating Loads

Calculate the heating requirements for each space.

Step 2: Select the Heat Source

Determine whether the system will use:

• Boiler

• Air-to-water heat pump

• Ground-source heat pump

• Other hydronic source

Step 3: Develop the Floor Layout

Determine tubing location, spacing, circuits, and zones.

Step 4: Select the Manifold

The manifold distributes water to individual floor circuits.

Step 5: Install the Tubing

Tubing is installed according to the selected floor-system design.

Step 6: Pressure Test the System

The hydronic system should be tested before the floor assembly is closed.

Step 7: Complete the Floor Assembly

Floor materials are installed according to the system and manufacturer’s requirements.

Step 8: Connect Controls and Heat Source

The radiant system is connected to the mechanical equipment and controls.

Step 9: Commission the System

Water temperatures, flow, controls, and zone operation should be verified.

What Engineering Is Required for Radiant Floor Heating?

Radiant floor heating is an integrated building system rather than simply a floor product.

Engineering may be needed to evaluate:

• Building heat loss

• Heating loads

• Tubing layout

• Water temperatures

• Flow rates

• Manifold configuration

• Heat-source capacity

• Pump selection

• Controls

• Floor construction

• Equipment locations

For hydronic systems, the engineering design also needs to coordinate plumbing and mechanical components.

Why Heat-Loss Calculations Matter

The radiant system needs to provide enough heat to offset the building’s design heat loss.

If the system is undersized, it may not maintain the desired indoor temperature during peak conditions.

If it is significantly oversized, the project may incur unnecessary equipment and installation costs.

Heat-loss calculations help establish the required capacity.

They also help determine:

• Floor output

• Tubing spacing

• Water temperature

• Zone requirements

• Equipment capacity

This is one of the most important engineering steps in radiant-floor design.

Radiant Floor Heating in New Construction

New construction generally provides more flexibility for radiant systems.

The design team can coordinate the system with:

• Structural slabs

• Floor assemblies

• Insulation

• Mechanical rooms

• Plumbing

• Electrical systems

• Flooring

This allows tubing and equipment to be incorporated before finishes are installed.

DOE has documented high-performance homes using in-floor hydronic radiant tubing supplied by an air-to-water heat pump, demonstrating how radiant floors can be integrated into a broader high-efficiency building strategy.

Radiant Floor Heating in Renovation Projects

Renovations require more careful evaluation.

Potential challenges include:

• Existing floor height

• Finished flooring

• Door clearances

• Stair dimensions

• Existing plumbing

• Existing heating equipment

• Structural conditions

• Limited access

In some renovations, low-profile systems can reduce floor-height impacts.

In others, a different heating technology may provide better overall value.

The existing building should therefore be assessed before the radiant system is selected.

Radiant Floor Heating and Building Insulation

Radiant heating does not compensate for poor building-envelope performance.

If a home has:

• Poor insulation

• Significant air leakage

• Inefficient windows

• Thermal bridges

the heating system may need to operate harder to maintain indoor temperatures.

Improving the building envelope can therefore reduce the heating load before the radiant system is sized.

A strong design approach considers:

Building envelope + Heating load + Distribution system + Heat source + Controls

rather than evaluating the radiant floor independently.

Radiant Floor Heating and Smart Controls

Controls can help regulate radiant systems based on:

• Indoor temperature

• Outdoor temperature

• Time schedules

• Individual zones

• Water temperature

• Occupancy

Hydronic systems can also use outdoor-reset strategies to adjust water temperature based on outdoor conditions.

Proper controls can improve comfort and help prevent unnecessary heating.

DOE emphasizes controls, sensors, and fault detection as important areas for optimizing building-system performance.

Maintenance Requirements for Radiant Floor Heating

Hydronic radiant systems contain mechanical and plumbing components that require maintenance.

Depending on the system, maintenance can include:

• Heat-source servicing

• Pump inspection

• Manifold inspection

• Valve inspection

• Pressure checks

• Air removal

• Water-quality management

• Controls verification

The floor tubing itself generally requires less routine attention than the mechanical equipment supplying it.

However, leaks or failures within concealed tubing can be more difficult to access.

Common Radiant Floor Heating Mistakes

Installing the System Without Calculating Heat Loss

The system should be sized around actual heating requirements.

Treating All Rooms the Same

Different rooms can have different heat losses and floor areas.

Ignoring Floor Coverings

Floor finishes affect heat transfer.

Failing to Consider Floor Height

Retrofit systems can change finished-floor elevations.

Selecting the Heat Source Separately

The heat source and radiant distribution should be designed together.

Ignoring Controls

A radiant system without appropriate control strategy may not deliver its full performance potential.

Overpromising Energy Savings

Radiant heating can be efficient, but performance depends on the complete building and heating system.

Treating Radiant Heating as Automatically Better

The appropriate heating technology depends on the project.

Is Radiant Floor Heating Worth It?

Radiant floor heating can be an excellent option when comfort, quiet operation, concealed distribution, and compatibility with a particular building design are priorities.

It may be especially attractive when:

• A home is being newly constructed

• A major renovation is already planned

• Floor finishes are being replaced

• Ductwork is difficult to accommodate

• Hydronic heating is already available

• A heat-pump-based hydronic system is being considered

• The owner prioritizes radiant comfort

It may be less attractive when:

• The project is a minor renovation

• Existing floors cannot easily be modified

• Installation costs are highly constrained

• A ducted heating-and-cooling system is already appropriate

• The building has high heat loss

• Floor-height changes create complications

The right answer depends on the building.

A Practical Process for Evaluating Radiant Floor Heating

Step 1: Assess the Building

Review:

• Building envelope

• Floor construction

• Existing heating

• Available mechanical space

Step 2: Calculate Heating Loads

Determine the design heating requirements for each space.

Step 3: Define Comfort Objectives

Establish desired indoor temperatures and zoning requirements.

Step 4: Select the Radiant Technology

Compare:

• Hydronic

• Electric

• Retrofit systems

• Embedded systems

Step 5: Evaluate the Heat Source

Consider:

• Boiler

• Air-to-water heat pump

• Ground-source heat pump

• Other appropriate sources

Step 6: Develop the Floor Layout

Determine tubing or element placement and zones.

Step 7: Coordinate Floor Construction

Review:

• Insulation

• Structural conditions

• Floor height

• Flooring

• Expansion and movement considerations

Step 8: Design Controls

Determine thermostat, zoning, temperature, and control requirements.

Step 9: Evaluate Lifecycle Cost

Compare:

• Installation

• Energy

• Maintenance

• Equipment replacement

Step 10: Complete Installation and Commissioning

Verify system performance before finalizing the project.

How Daymark Engineers Can Support Radiant Heating Projects

Radiant floor heating sits at the intersection of mechanical engineering, plumbing, architecture, energy performance, and building construction.

A coordinated engineering approach can help evaluate:

• Heating loads

• Hydronic distribution

• Heat-source selection

• Pumping

• Controls

• Equipment sizing

• Floor-system coordination

• Energy performance

• Existing-building conditions

Daymark Engineers provides MEP-FP engineering, energy modeling, BIM services, value engineering, peer review, drafting, and related building-engineering services that can support residential building-system design and coordination.

Considering radiant floor heating for a new home or renovation? Contact Daymark Engineers to evaluate the system requirements and determine whether radiant heating is appropriate for your project.

Frequently Asked Questions About Radiant Floor Heating

What Is Radiant Floor Heating?

Radiant floor heating is a space-heating system that transfers heat through the floor into the occupied space. It can use heated water circulated through tubing or electric heating elements installed beneath or within the floor.

Is Radiant Floor Heating Energy Efficient?

It can be part of an efficient heating system, particularly when paired with an appropriate low-temperature heat source and a well-insulated building. Overall efficiency depends on the heat source, building envelope, controls, operating conditions, and system design.

What Is the Difference Between Hydronic and Electric Radiant Floor Heating?

Hydronic systems circulate heated water through floor tubing. Electric systems use electrical resistance elements beneath the floor. Hydronic systems are often considered for larger areas, while electric systems can be useful for smaller or supplemental applications.

Is Radiant Floor Heating Expensive?

Installation costs vary significantly. Hydronic systems can require more equipment and installation work, while retrofit conditions can increase costs. The total cost should include the distribution system, heat source, controls, flooring, labor, and any required building modifications.

Can Radiant Floor Heating Heat an Entire House?

Yes, a properly designed radiant system can serve an entire home. The system must be sized to meet the building’s design heating load and configured appropriately for the floor construction and heat source.

Can Radiant Floor Heating Be Used With a Heat Pump?

Yes. Air-to-water and certain ground-source heat pumps can supply heated water to hydronic radiant floors. DOE specifically identifies air-to-water heat pumps as a radiant-floor heating application.

Is Hydronic Radiant Floor Heating Better Than Electric?

Not universally. Hydronic and electric systems have different installation requirements, operating characteristics, and applications. The better option depends on project size, utilities, floor construction, heating demand, and budget.

Can Radiant Floor Heating Be Installed Under Hardwood?

Some hardwood products can be compatible with radiant heating, but the specific flooring manufacturer’s requirements must be followed. Floor temperature limits, moisture conditions, installation methods, and product specifications should be coordinated with the radiant system.

Can Radiant Floor Heating Be Installed Under Tile?

Yes. Tile and stone are commonly considered suitable floor finishes for radiant heating because they can transfer heat effectively. The complete floor assembly still needs to be designed appropriately.

Can Radiant Floor Heating Be Added to an Existing Home?

Yes, but retrofits can be more complicated than new construction. Floor height, existing finishes, access, insulation, structural conditions, and available mechanical space should be evaluated before selecting the system.

Does Radiant Floor Heating Replace Air Conditioning?

Usually not. Radiant floor heating is primarily a heating system. If cooling is required, the project may need a separate cooling system or a coordinated radiant/cooling strategy.

Can Radiant Floors Be Used for Cooling?

Radiant cooling is possible in certain systems, but condensation control is critical. A floor surface that falls below the surrounding air’s dew point can develop condensation, so radiant cooling requires appropriate humidity and control strategies.

How Long Does Radiant Floor Heating Take to Warm Up?

Response time depends on the floor construction and system type. Systems embedded in high-mass slabs generally respond more slowly than low-mass systems.

Does Radiant Floor Heating Require Maintenance?

Hydronic systems require maintenance of their heat source, pumps, valves, manifolds, controls, and water system. The concealed floor tubing generally requires less routine maintenance but can be more difficult to access if a problem occurs.

Does Radiant Floor Heating Increase Floor Height?

It can, particularly in retrofit applications. The effect depends on the system type and installation method. Floor height should be evaluated before the system is selected.

Is Radiant Floor Heating Better Than Forced-Air Heating?

Neither is universally better. Radiant heating can provide even, quiet heat and reduce dependence on ductwork, while forced-air systems can respond quickly and can often provide heating, cooling, filtration, and ventilation through one distribution system.

Should an Engineer Design a Radiant Floor Heating System?

For complex residential projects, an engineer can help calculate heating loads, select system capacity, coordinate hydronic distribution, evaluate the heat source, design controls, and coordinate the system with the rest of the building.
